Item # 154.001
Key figures
- ultrawide input voltage range:28 ... 160 VDC
- very high efficiency:up to 97%
- peak input voltage:170 VDC
- output voltage / max. output current:24.0 VDC / 13.0 ADC
Applications

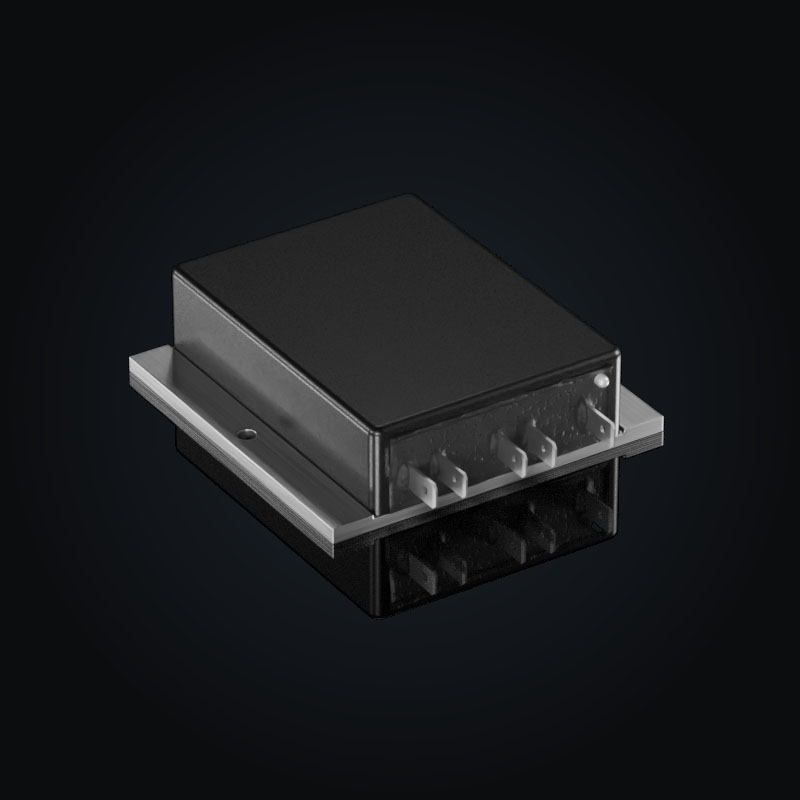

DC-Converter 154-24 (art.-no. 154.001), non isolated DC/DC converter 24V output, universal, robust and compact. A great classic dc/dc power supply of Demke.
Its ultra wide input voltage range of 28...160VDC generates uncompromising flexibility for 48VDC, 80VDC and 110VDC dc power grids while integrating three dc-dc converters into one unit with even very high efficiency. DC-Converter 151-24, 28VDC...60VDC, 24V/13A -- 153-24, 28VDC...110VDC, 24V/13A -- 154-24, 28VDC...160VDC, 24V/13A.
Extend your system lifetime under the harshest environment with our 154DH-24-ON, designed for the harshest environments.
Product features
non-isolated DC/DC buck converter
robust and climate proof design
excellent thermal characteristics
permanently no-load and short-circuit proof
integrated EMI input and output filter
no power derating
for ambient temperatures between -40°C / +85°C
thermal shutdown at +90°C
Areas of application
- Wind power
- Industrial trucks
- Warehouse management systems
- Rail transport
- Electromobility
- Mountain railways
- Battery-powered electrical systems
- Charging converter
- Universal
