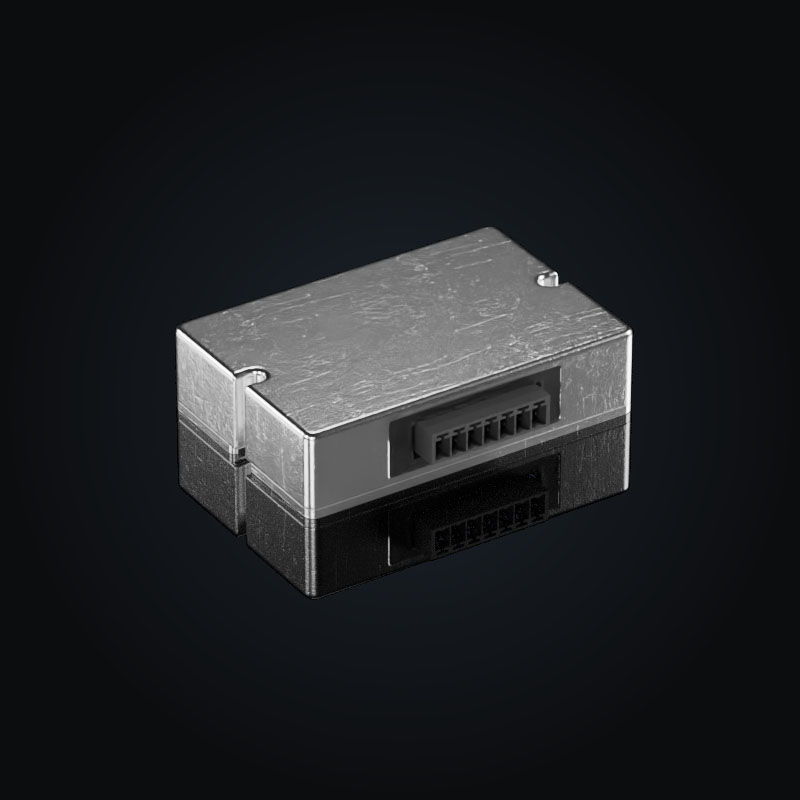

Item # 337.003
Key figures
- ultrawide input voltage range:22 ... 80 VDC
- very high efficiency:up to 92%
- peak input voltage:100 VDC
- output voltage / max. output current:13.8 VDC / 6.0 ADC
Applications
Isolated DC/DC converter as compact and robust 13.8V DC power supply for mobile industrial applications. The DC-Transformer 337-13.8-SD is designed for 48V Li-Ion battery systems or 32V supercap energy storage systems. As all of our DC/DC converters, this one can also be customised easily.
Product features
isolated DC/DC buck converter
robust and climate proof design
excellent thermal characteristics
permanently no-load and short-circuit proof
integrated EMI input and output filter
no power derating
for ambient temperatures between -40°C / +85°C
thermal shutdown at +90°C
CC/CV charging characteristic
Areas of application
- Wind power
- Industrial trucks
- Warehouse management systems
- Rail transport
- Electromobility
- Mountain railways
- Battery-powered electrical systems
- Charging converter
- Universal
