Item # 412.006
Key figures
- ultrawide input voltage range:9 ... 36 VDC
- very high efficiency:up to 90%
- peak input voltage:38 VDC
- output voltage / max. output current:12.0 VDC / 1.0 ADC
Applications

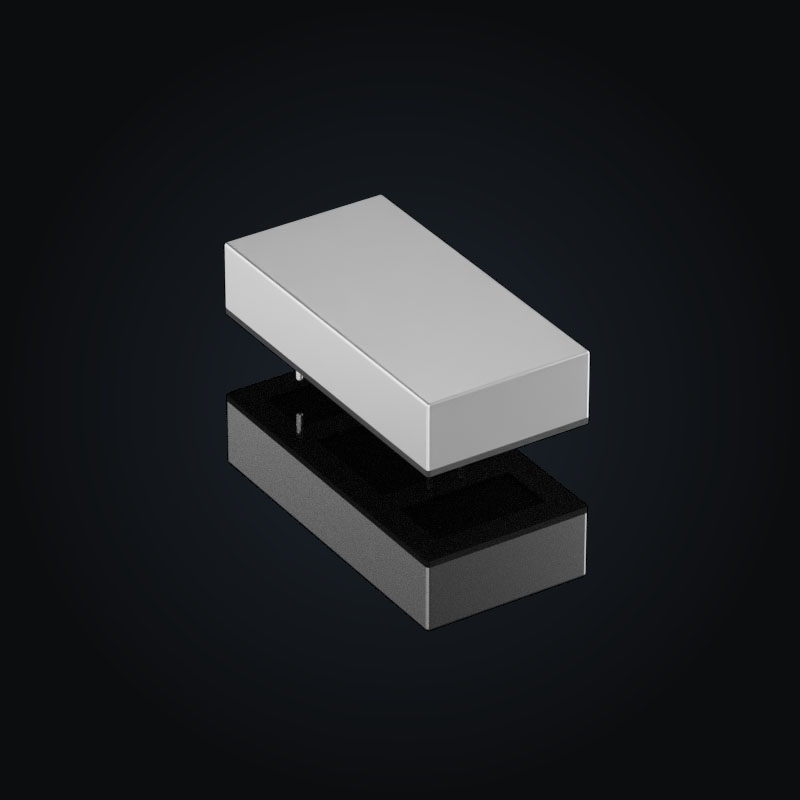

Isolated DC/DC converter for THT print mounting with 12V output voltage is highly reliable in operation, and is suitable for very extreme ambient temperatures from -40°C to +85°C. The heat dissipation in these isolated print-mounted DC/DC converters is passive via the aluminum housing without power derating.
Product features
isolated DC/DC converter
robust and climate proof design
excellent thermal characteristics
permanently no-load and short-circuit proof
integrated EMI input and output filter
no power derating
for ambient temperatures between -40°C / +75°C
thermal shutdown at +0°C
Areas of application
- Wind power
- Industrial trucks
- Warehouse management systems
- Rail transport
- Electromobility
- Mountain railways
- Battery-powered electrical systems
- Charging converter
- Universal
