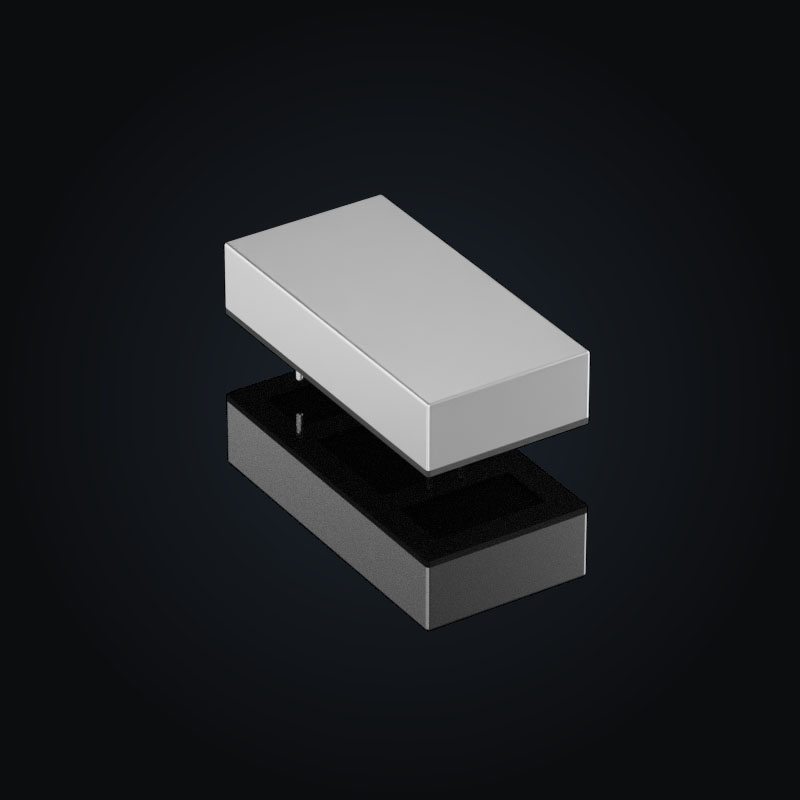

Item # 412.008
Key figures
- ultrawide input voltage range:9 ... 36 VDC
- very high efficiency:up to 86%
- peak input voltage:40 VDC
- output voltage / max. output current:5.1 VDC / 2.2 ADC
Applications
DC/DC converter (with single-phase forward power converter technology) and active rectification on the output side. The use of first-class, state-of-the-art components gives the DC/DC supply its extremely high efficiency.
Product features
isolated DC/DC converter
robust and climate proof design
excellent thermal characteristics
permanently no-load and short-circuit proof
integrated EMI input and output filter
no power derating
for ambient temperatures between -40°C / +75°C
thermal shutdown at +0°C
Areas of application
- Wind power
- Industrial trucks
- Warehouse management systems
- Rail transport
- Electromobility
- Mountain railways
- Battery-powered electrical systems
- Charging converter
- Universal
