Item # 739.004
Key figures
- ultrawide input voltage range:18 ... 36 VDC
- very high efficiency:up to 95%
- peak input voltage:38 VDC
- output voltage / max. output current:200.0 VDC / 3.0 ADC
Applications

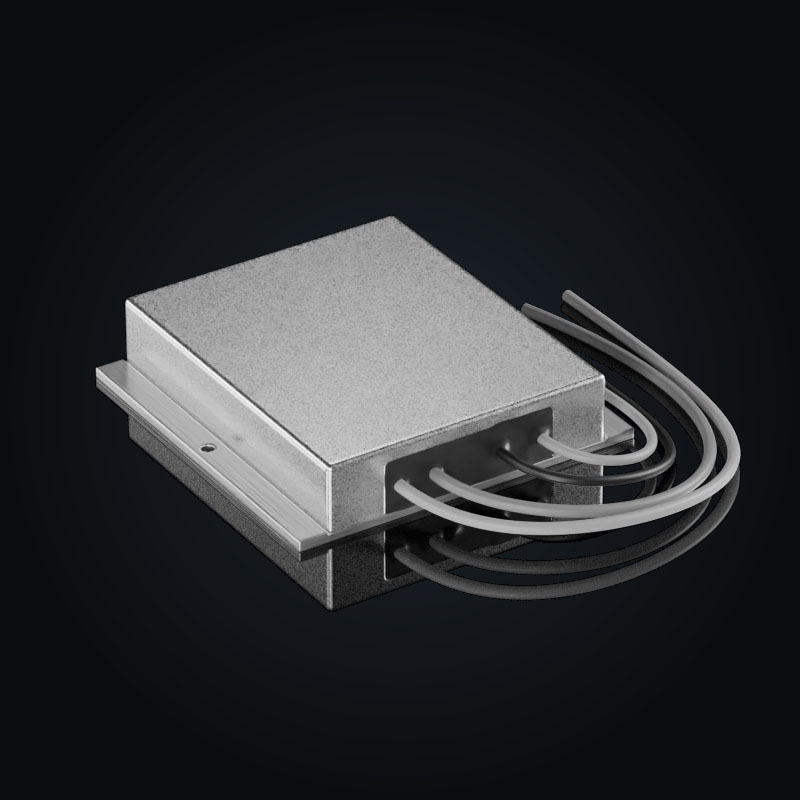

Our high-performance galvanically isolated DC/DC step-up and step-down converter converts voltages from 24V to 200V with an output of 600W. Thanks to galvanic isolation, this device offers maximum safety and prevents unwanted current flows between the input and output circuits.
Product features
isolated DC/DC buck-boost converter
robust and climate proof design
excellent thermal characteristics
permanently no-load and short-circuit proof
integrated EMI input and output filter
no power derating
for ambient temperatures between -40°C / +85°C
thermal shutdown at +90°C
CC/CV charging characteristic
Areas of application
- Wind power
- Industrial trucks
- Warehouse management systems
- Rail transport
- Electromobility
- Mountain railways
- Battery-powered electrical systems
- Charging converter
- Universal
