Item # 364.008
Key figures
- ultrawide input voltage range:16 ... 160 VDC
- very high efficiency:up to 93%
- peak input voltage:170 VDC
- output voltage / max. output current:±15.0 VDC / ±8.0 ADC
Applications

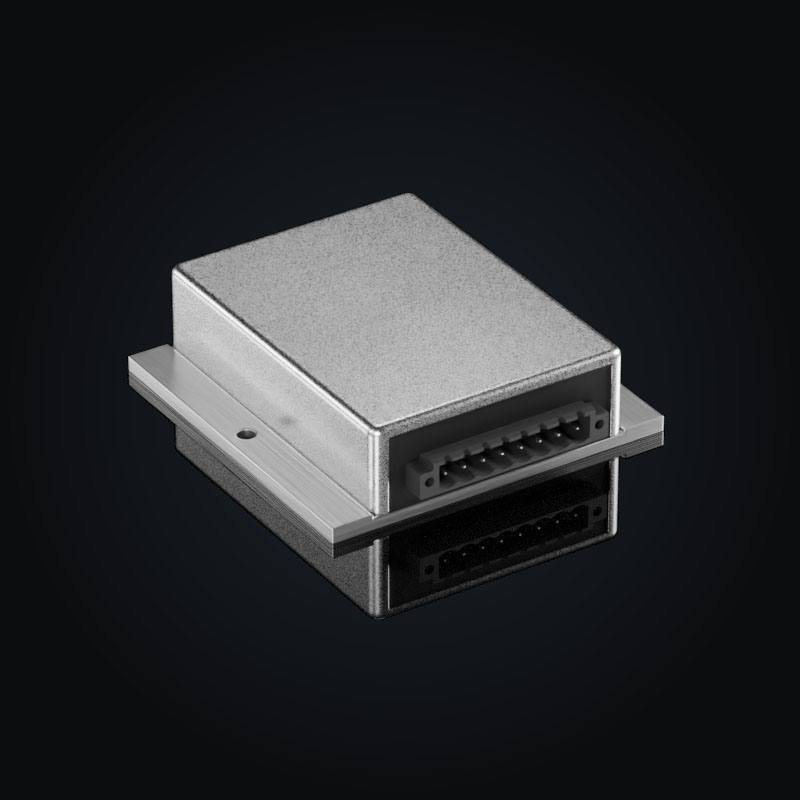

The 364W2 DC/DC converter with an ultra-wide input voltage range and bipolar output voltage of +/- 15V is designed for railway applications. With its new all-aluminum housing, the DC-DC converter has been comprehensively upgraded. It is fully compatible with the 364W1-15015-SDB1.
The load on the output can be distributed unsymmetrical up to 100%. That means one can draw the full output power of +8A at +15VDC or -8A at -15VDC.
Doubling the power through parallel operation as well as supplying active loads is possible.
Customer-specific DC-DC converters can be realized on request. Please share your requirements with us.
Product features
isolated DC/DC buck converter
robust and climate proof design
excellent thermal characteristics
permanently no-load and short-circuit proof
integrated EMI input and output filter
no power derating
for ambient temperatures between -40°C / +85°C
thermal shutdown at +90°C
CC/CV charging characteristic
bipolar or doubled output
Areas of application
- Wind power
- Industrial trucks
- Warehouse management systems
- Rail transport
- Electromobility
- Mountain railways
- Battery-powered electrical systems
- Charging converter
- Universal
