Item # 154.007
Key figures
- ultrawide input voltage range:28 ... 160 VDC
- very high efficiency:up to 95%
- peak input voltage:170 VDC
- output voltage / max. output current:24.0 VDC / 13.0 ADC
Applications

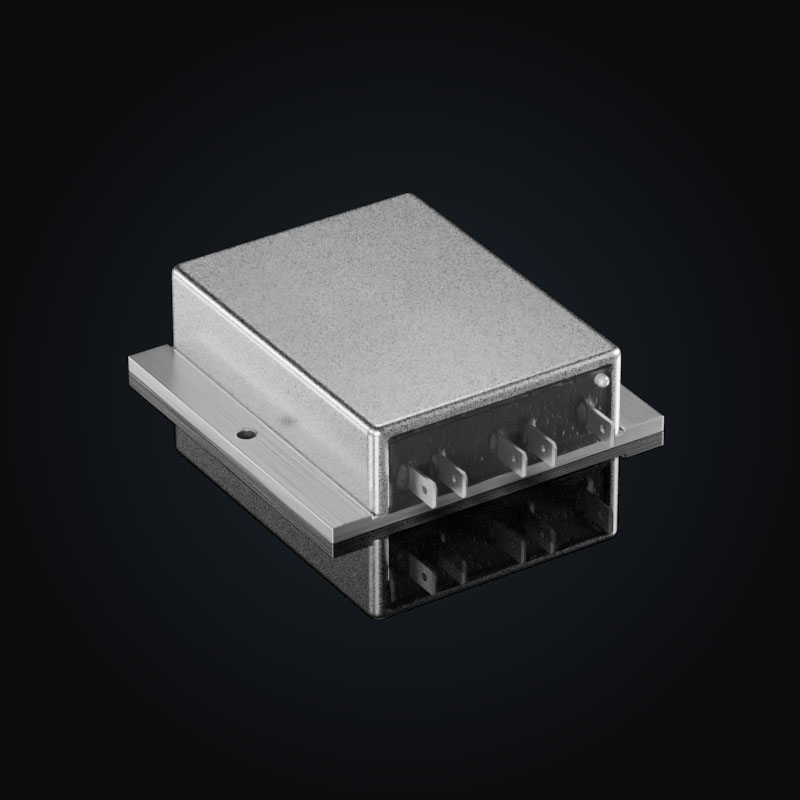

DC-Converter 154DH-24-ON (Art. 154.007), progressive development of the 154-24 in the new all-aluminum case with similar specifications. The dc-transformer 154DH-24-ON with its 24V DC output was completely facelifted. The constant current control in the overload range has been significantly improved and forms a quasi-CC-CV charging function. (Constant current in overlaod condition for battery charging applications). The advanced integrated EMC filter completes this new DC-DC converter. The product is designed for increased environmental demands.
Product features
non-isolated DC/DC buck converter
robust and climate proof design
excellent thermal characteristics
permanently no-load and short-circuit proof
integrated EMI input and output filter
no power derating
for ambient temperatures between -40°C / +85°C
thermal shutdown at +90°C
CC/CV charging characteristic
Areas of application
- Wind power
- Industrial trucks
- Warehouse management systems
- Rail transport
- Electromobility
- Mountain railways
- Battery-powered electrical systems
- Charging converter
- Universal
