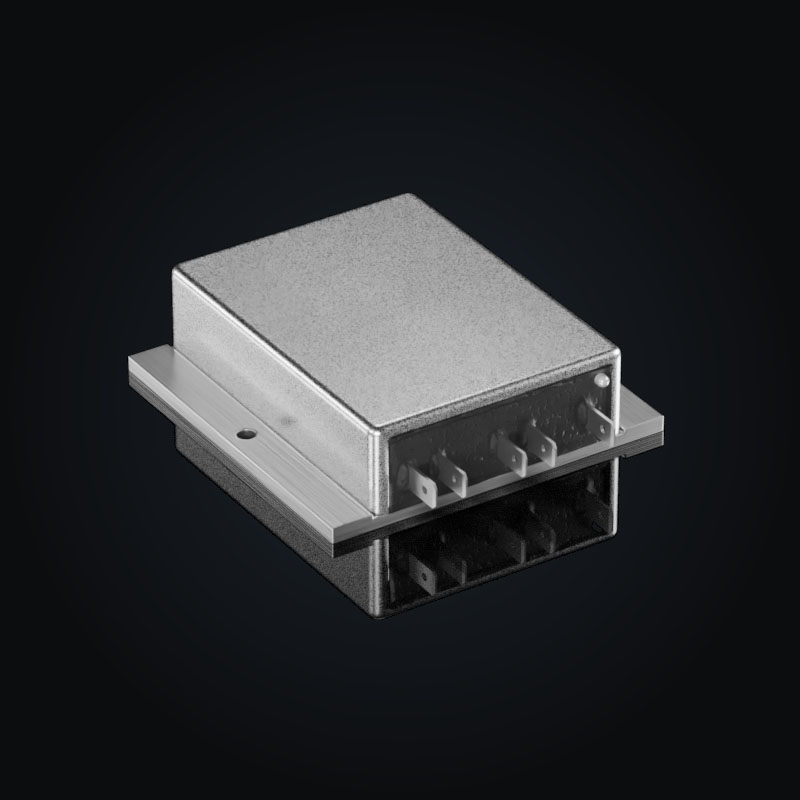

The 154DH-48-ON by Demke Electronic is a non-isolated DC/DC step-down converter for a nominal input voltage of 110 VDC. It operates across an input voltage range of 50 to 160 VDC and delivers 48 VDC at up to 10 A, equivalent to 480 W of output power. Efficiency reaches up to98% at nominal input voltage and full load.
| Input voltage Vin | 50…160 VDC |
|---|---|
| Nominal input voltage | 110 VDC |
| Peak input voltage | 170 VDC |
| Max. input current | 10 A |
| Recommended input fuse | 13 A |
| Output voltage Vout | 48 VDC |
| Output current Iout | 10 A |
| Output power Pout | 480 W |
| Efficiency | up to 98 % |
| Output configuration | Unipolar |
| Isolation | Non-isolated |
| Insulation strength primary to case | 1500 VDC |
| EMI filter | Input and output |
| Switching frequency | 130 kHz |
| Max. capacitive load | Unlimited |
| Control function | ON – Enable |
| Enable voltage | 40…160 VDC |
| Dimensions | 90 × 90 × 25.5 mm |
|---|---|
| Weight | 380 g |
| Mounting | Wall mounting |
| Connection type | Blade terminals |
