172-24-SD – DC/DC step-down converter 48 VDC to 24 VDC by Demke Electronic

172-24-SD | DC/DC step-down converter 48 VDC to 24 VDC, 960 W

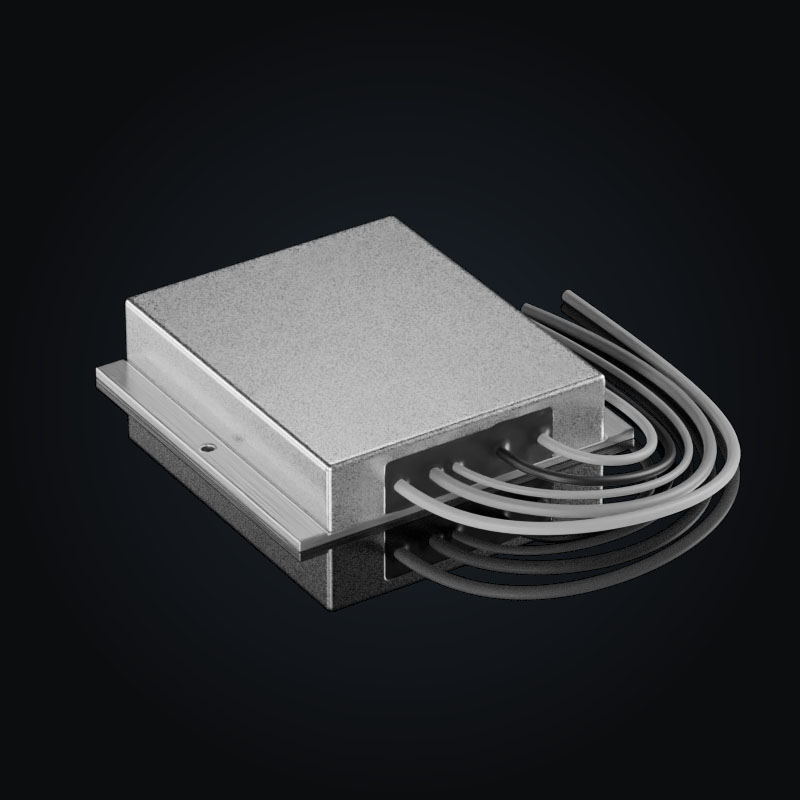

DC-Converter 172-24-SD

SKU: 172.002
BTO – build to order / manufactured on request
Lifecycle: BTO – Built to order

The 172-24-SD by Demke Electronic is a non-isolated DC/DC step-down converter for a nominal input voltage of 48 VDC. It operates across an input voltage range of 26 to 70 VDC and delivers 24 VDC at up to 40 A, equivalent to 960 W of output power. Efficiency reaches up to97% at nominal input voltage and full load.

CC/CViConstant-current/constant-voltage control, e.g. for charging applications.Parallel operation / active loadsInput and output EMI filterNo power deratingNo-load and short-circuit proof
Input voltage Vin26…70 VDC
Output voltage Vout24 VDC
Output current Iout40 A
Output power Pout960 W
Efficiencyup to 97 %
Technical Documentation
Request a quote

Product Description: DC-Converter 172-24-SD

Neue Produktankündigung. Der galvanisch nicht getrennte DC/DC Abwärtswandler von 48V auf 24V respektive 28V mit 1000W Leistung für automotive Anwendungen. Die Anschlüsse sind aktuell über Anschlusskabel mit entsprechenden Querschnitten von 6mm2 und 10mm2 realisiert. Bei Bedarf kann auf eine Lösung mit Gewindebolden zurürckgegriffen werden. Das Ergebnis aus der Verknüpfung von modernsten Komponenten und jahrelangem Knowhow! Der DC-DC-Wandler für höchste Ansprüche. Die hardwareseitigen Konfigurationsmöglichkeiten sind mit Shutdown (Shutdown mit -VBat) und ON/ OFF Option (Enable mit +VBat) beispielhaft. Eine Steckerlösung bis 45A ist ebenfalls möglich.

Technical Data: DC-Converter 172-24-SD

Electrical Specifications

Input voltage Vin26…70 VDC
Nominal input voltage48 VDC
Peak input voltage75 VDC
Max. input current40 A
Recommended input fuse50 A
Output voltage Vout24 VDC
Output current Iout40 A
Output power Pout960 W
Efficiencyup to 97 %
Output configurationUnipolar
IsolationNon-isolated
Insulation strength primary to case1500 VDC
EMI filterInput and output
Switching frequency110 kHz
Max. capacitive loadUnlimited
Control functionON – Enable
Enable voltage26…70 VDC

Mechanical Specifications

Dimensions130 × 130 × 28 mm
Weight900 g
MountingWall mounting
Connection typeCable
Cable length300 mm

Standards and Certifications

CEEN 55022 < Class AEN 61000-4-2EN 61000-4-3EN 61000-4-4EN 61000-4-5EN 61000-4-6EN 61000-6-2EN 61000-6-4IEC 60068-2-6:2007IEC 60068-2-27:2009REACHRoHS

Product Features

robust and climate-resistant designexcellent thermal characteristicsfull PU potting for demanding environmental conditionscontinuous no-load and short-circuit proofintegrated EMI input and output filterno power deratingCC/CV charging characteristiciConstant-current/constant-voltage control, e.g. for charging applications.for active loads, can be connected in parallelvery low input ripple and noisewide input voltage rangefor ambient temperatures from -40 °C to +85 °Cthermal shutdown at +90 °C

Applications

Battery-Powered SystemsBattery Chargers & Charging SystemsE-MobilityIntralogistics & Warehouse AutomationMaterial Handling Vehicles

Downloads and Documentation

DatasheetTechnical datasheetSafety instructionsTechnical drawing
