Item # 344.007
Key figures
- ultrawide input voltage range:22 ... 160 VDC
- very high efficiency:up to 93%
- peak input voltage:170 VDC
- output voltage / max. output current:24.0 VDC / 2.0 ADC
Applications

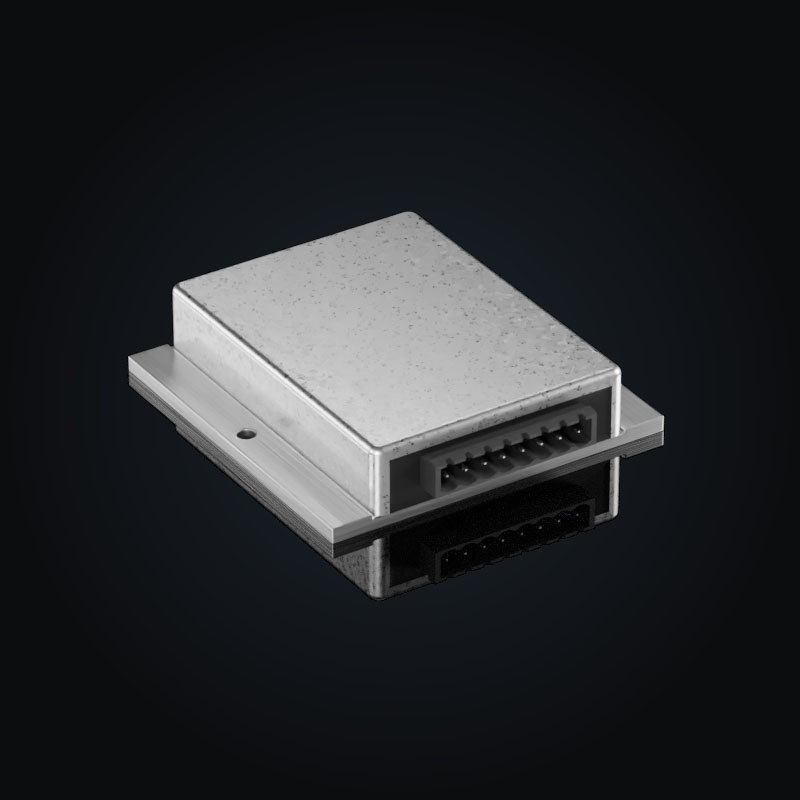

The DC-DC Converter 344DH-24 is the successor to the DC-Converter 344-24-SD. It was specially developed for use in extreme environments and climatic conditions. The EMC properties have been further improved, the current and voltage control even better coordinated. This makes the 344DH-24 universally applicable as a 24VDC power supply. The realization of a customized DC-DC converter with significantly increased output power to e.g. 80W is possible. The type of consumers, whether inductive, capacitive, ohmic, or a combination thereof, e.g. consumers with backup batteries can be easily supplied. Please ask us for further adjustments!
Product features
isolated DC/DC buck-boost converter
robust and climate proof design
excellent thermal characteristics
permanently no-load and short-circuit proof
integrated EMI input and output filter
no power derating
for ambient temperatures between -40°C / +85°C
thermal shutdown at +90°C
CC/CV charging characteristic
Areas of application
- Wind power
- Industrial trucks
- Warehouse management systems
- Rail transport
- Electromobility
- Mountain railways
- Battery-powered electrical systems
- Charging converter
- Universal
