Item # 729.003
Key figures
- ultrawide input voltage range:9 ... 16 VDC
- very high efficiency:up to 95%
- peak input voltage:18 VDC
- output voltage / max. output current:24.0 VDC / 18.5 ADC
Applications

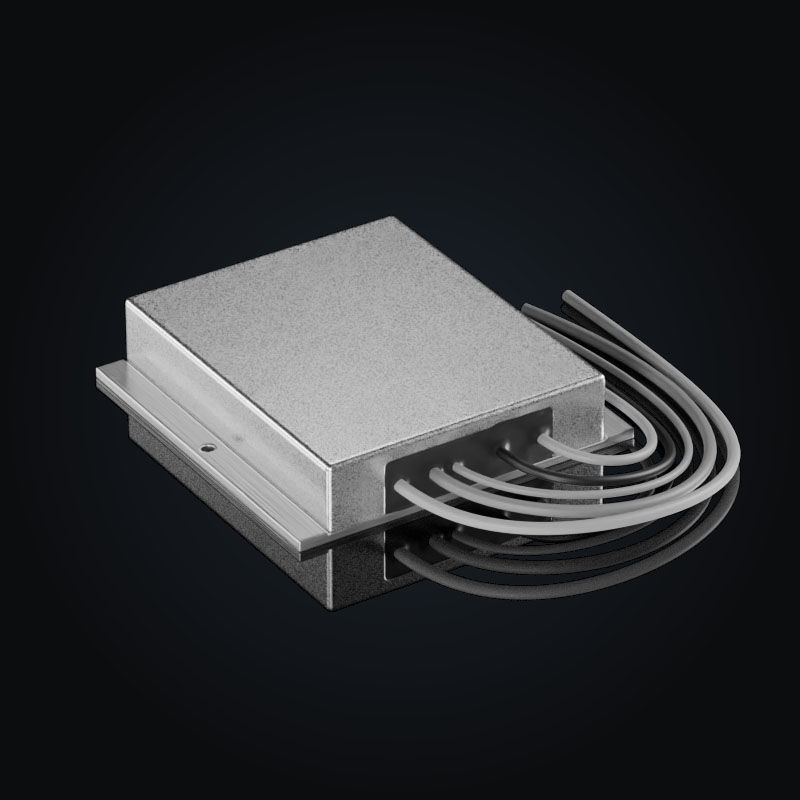

Galvanically isolated buck-boost DC/DC converter 12V, 24V, 18A with 450W power.
The output voltage is 24VDC and is preset.
The L-Version with its lower start-up and undervoltage lockout threshold steps up input voltages from 9VDC to 24VDC easily.
The galvanically isolated DC-DC converter has been specially developed for automotive engineering and is designed for E13 approval.
The output voltage can be customised in a wide range (e.g. from 12V to 90V).
The U/I characteristic can also be customised.
Product features
isolated DC/DC buck-boost converter
robust and climate proof design
excellent thermal characteristics
permanently no-load and short-circuit proof
integrated EMI input and output filter
no power derating
for ambient temperatures between -40°C / +85°C
thermal shutdown at +90°C
CC/CV charging characteristic
Areas of application
- Wind power
- Industrial trucks
- Warehouse management systems
- Rail transport
- Electromobility
- Mountain railways
- Battery-powered electrical systems
- Charging converter
- Universal
