Item # 755.001
Key figures
- ultrawide input voltage range:18 ... 110 VDC
- very high efficiency:up to 95%
- peak input voltage:125 VDC
- output voltage / max. output current:24.0 VDC / 19.0 ADC
Applications

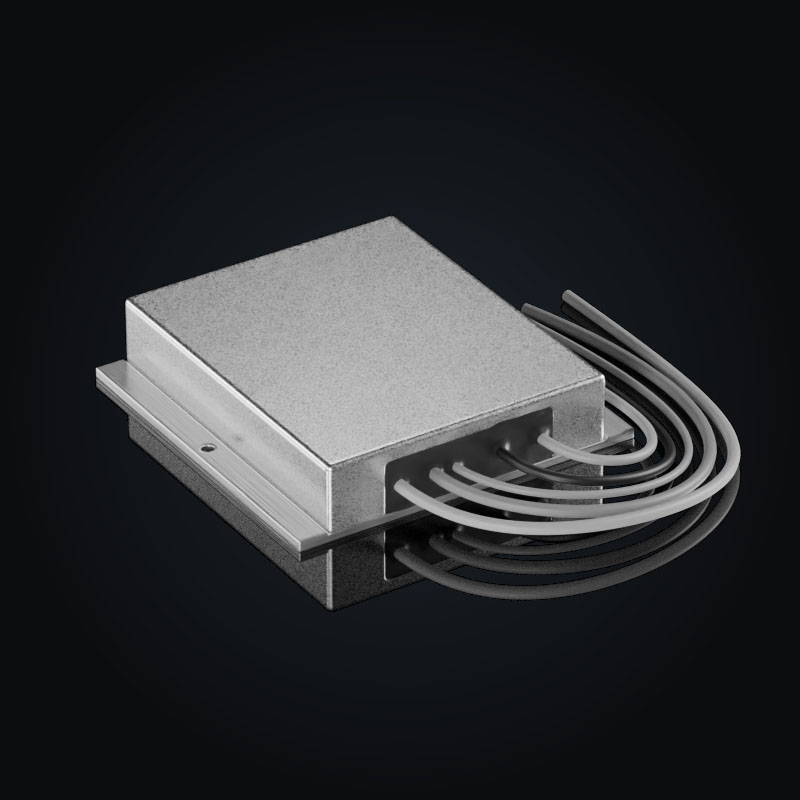

The Demke DC-Converter 755-24-SD is an galvanically isolated DC/DC Buck-Boost converter and is specially designed for 24V, 48V and 80V supply systems. Thanks to its ultra-wide input voltage range, the DC/DC converter operates accurately within the specified input voltage range even if the input voltage deviates statically by +/- 30% from the previously mentioned DC-supplies.
Product features
isolated DC/DC buck-boost converter
robust and climate proof design
excellent thermal characteristics
permanently no-load and short-circuit proof
integrated EMI input and output filter
no power derating
for ambient temperatures between -40°C / +85°C
thermal shutdown at +90°C
CC/CV charging characteristic
Areas of application
- Wind power
- Industrial trucks
- Warehouse management systems
- Rail transport
- Electromobility
- Mountain railways
- Battery-powered electrical systems
- Charging converter
- Universal
