105-3.3 – DC/DC step-down converter 24 VDC to 3.30 VDC by Demke Electronic

105-3.3 | DC/DC step-down converter 24 VDC to 3.30 VDC, 5 W

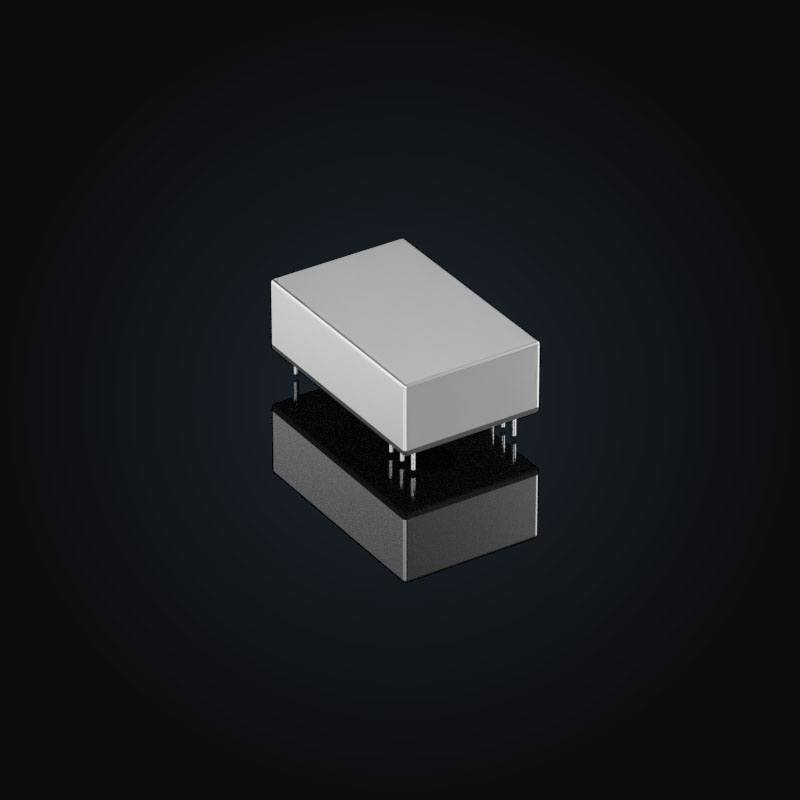

DC-Converter 105-3.3

SKU: 105.002
BTO – build to order / manufactured on request
Lifecycle: BTO – Built to order

The 105-3.3 by Demke Electronic is a non-isolated DC/DC step-down converter for a nominal input voltage of 24 VDC. It operates across an input voltage range of 6 to 36 VDC and delivers 3.30 VDC at up to 1.50 A, equivalent to 5 W of output power. Efficiency reaches up to95% at nominal input voltage and full load.

Input EMI filterNo power deratingNo-load and short-circuit proof
Input voltage Vin6…36 VDC
Output voltage Vout3.3 VDC
Output current Iout1.5 A
Output power Pout5 W
Efficiencyup to 95 %
Technical Documentation
Request a quote

Product Description: DC-Converter 105-3.3

The 105-3.3 is a classic non-isolated POL converter (3.3V Point of Load DC/DC converter) and it is mostly used on “motherboards” with DC supply voltages of 5V, 12V or 24V to generate the local 3.3VDC. An astonishing high efficiency characterizes the DC/DC converter in the Dil24 package even from 24V to 3.3V. The 3.3V output voltage can also be generated reliably with an input-side 5V supply voltage. Customer-specific adjustments in the output voltage down to 0.8V are possible at any time.

Technical Data: DC-Converter 105-3.3

Electrical Specifications

Input voltage Vin6…36 VDC
Nominal input voltage24 VDC
Peak input voltage38 VDC
Max. input current1 A
Recommended input fuse0 A
Output voltage Vout3.3 VDC
Output current Iout1.5 A
Output power Pout5 W
Efficiencyup to 95 %
Output configurationUnipolar
IsolationNon-isolated
EMI filterInput
Switching frequency200 kHz
Max. capacitive load6600

Mechanical Specifications

Dimensions32 × 20.4 × 10.5 mm
Weight14 g
MountingPCB mounting
Connection typeSolder pins

Standards and Certifications

EN 55022 < Class AEN 61000-6-4IEC 60068-2-6:2007IEC 60068-2-27:2009REACHRoHS

Product Features

robust and climate-resistant designexcellent thermal characteristicsfull PU potting for demanding environmental conditionscontinuous no-load and short-circuit proofintegrated EMI input filterno power deratingvery low input rippleultra-wide input voltage rangefor ambient temperatures from -40 °C to +85 °Cthermal shutdown at +110 °C

Applications

Battery-Powered SystemsE-MobilityRail Transportation

Downloads and Documentation

DatasheetTechnical datasheetSafety instructionsTechnical drawing
