Item # 154.012
Key figures
- ultrawide input voltage range:18 ... 160 VDC
- very high efficiency:up to 95%
- peak input voltage:170 VDC
- output voltage / max. output current:13.8 VDC / 17.0 ADC
Applications

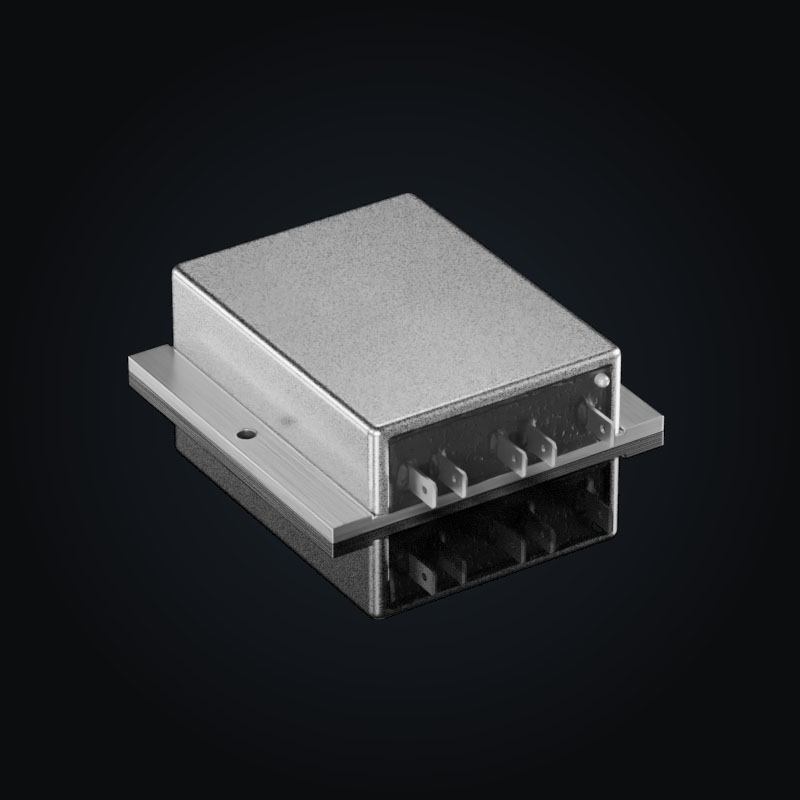

The dc power supply 154DH-13.8-ON converter with 13.8V output has improved electrical properties like the standard 154-13.8 with the phenol housing. A complete overhaul of the previous technology lets this dc-dc converter perform even better in battery charging systems, i.e. thanks to the improved CC / CV charging function.
Product features
non-isolated DC/DC buck converter
robust and climate proof design
excellent thermal characteristics
permanently no-load and short-circuit proof
integrated EMI input and output filter
no power derating
for ambient temperatures between -40°C / +85°C
thermal shutdown at +90°C
CC/CV charging characteristic
Areas of application
- Wind power
- Industrial trucks
- Warehouse management systems
- Rail transport
- Electromobility
- Mountain railways
- Battery-powered electrical systems
- Charging converter
- Universal
