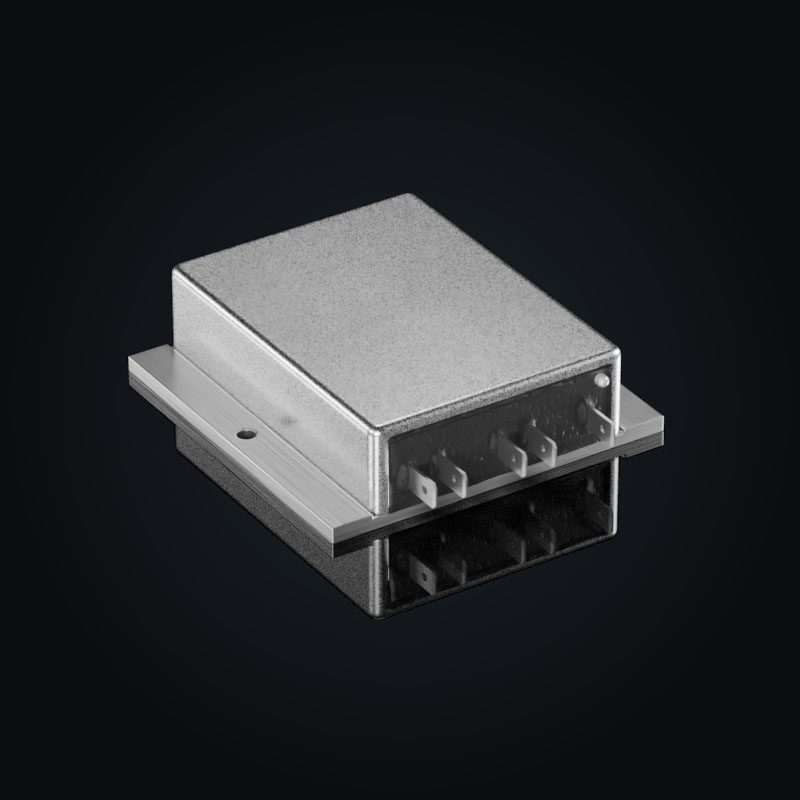

DC-Converter 162E-13.8-ON

Item # 162.001

Key figures

  • ultrawide input voltage range:
    16 ... 70 VDC
  • very high efficiency:
    up to 96%
  • peak input voltage:
    70 VDC
  • output voltage / max. output current:
    13.8 VDC / 20.0 ADC

Applications

Highly integrated DC/DC converter 24V/12V, DC/DC converter 48V/12V and DC/DC converter 60V/12V for battery applications for vehicles.

The voltage converter is optimised for 48V-60VDC vehicle electrical systems and delivers output currents of up to 20A at 12V or 13.8V. State-of-the-art semiconductors and heat dissipation to the housing enable this highly integrated and extremely compact converter with very high power density.

Product features

non-isolated DC/DC buck converter

robust and climate proof design

excellent thermal characteristics

permanently no-load and short-circuit proof

integrated EMI input and output filter

no power derating

for ambient temperatures between -40°C / +85°C

thermal shutdown at +90°C

CC/CV charging characteristic

Areas of application

  • Wind power
  • Industrial trucks
  • Warehouse management systems
  • Rail transport
  • Electromobility
  • Mountain railways
  • Battery-powered electrical systems
  • Charging converter
  • Universal
