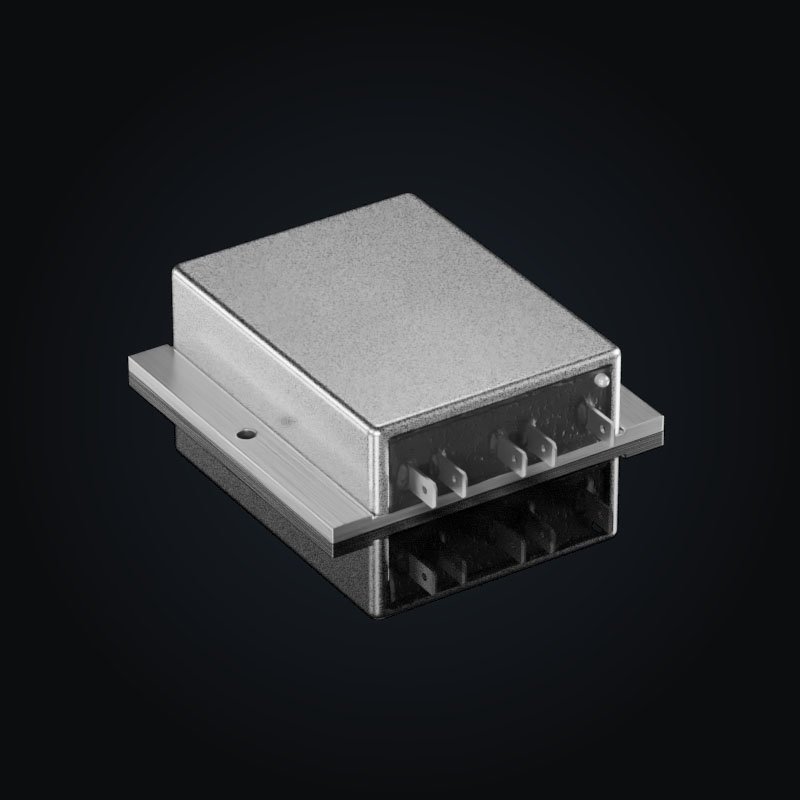

Item # 257.004
Key figures
- ultrawide input voltage range:7 ... 35 VDC
- very high efficiency:up to 97%
- peak input voltage:37 VDC
- output voltage / max. output current:24.0 VDC / 8.0 ADC
Applications
DC/DC boost converter 12V 24V 200W.
Short-circuit proof buck and boost DC charging converter for primary use in supercapacitor powered autonomous systems with output-side backup battery. The LEX version has the advantage of a very low input voltage of down to 7V. Output-side integrated reverse polarity protection diodes enable battery charging.
Customizing DC/DC converters as DC/DC Converter 12V, DC/DC Converter 13.8V or DC/DC Converter 27V and much more can be realized.
Product features
non-isolated DC/DC buck-boost converter
robust and climate proof design
excellent thermal characteristics
permanently no-load and short-circuit proof
integrated EMI input and output filter
no power derating
for ambient temperatures between -40°C / +85°C
thermal shutdown at +90°C
CC/CV charging characteristic
Areas of application
- Wind power
- Industrial trucks
- Warehouse management systems
- Rail transport
- Electromobility
- Mountain railways
- Battery-powered electrical systems
- Charging converter
- Universal
