344-24 – isolated DC/DC converter 80 VDC to 24 VDC by Demke Electronic

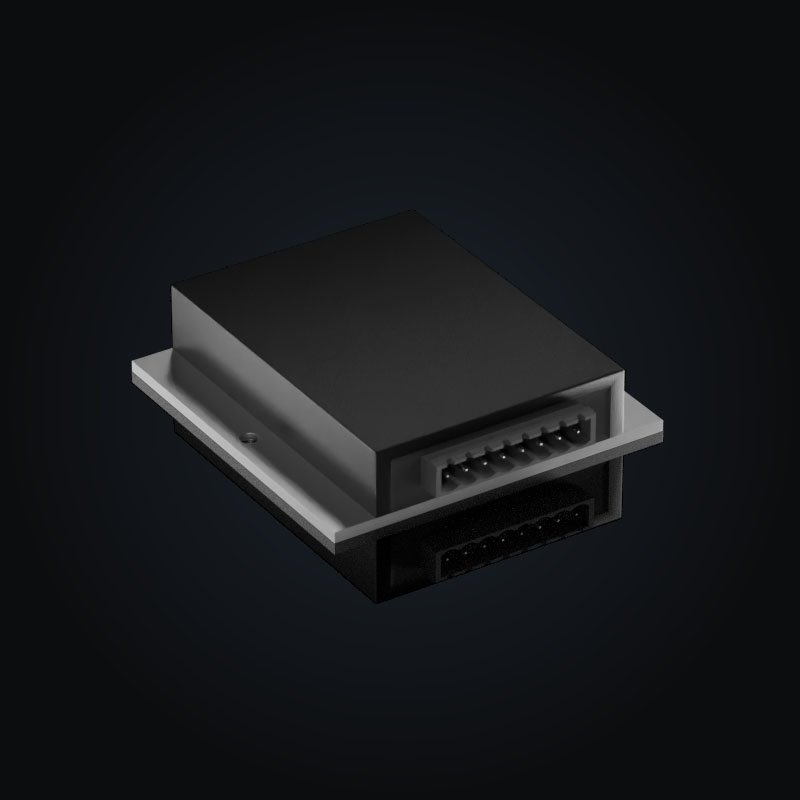

344-24 | Galvanically isolated DC/DC buck-boost converter 80 VDC to 24 VDC, 50 W

Name: DC-Converter 344-24
Brand: Demke Electronic
SKU: 344.006

DC-Converter 344-24

SKU: 344.006

Lifecycle: MTS – Available short-term

The 344-24 by Demke Electronic is a galvanically isolated DC/DC buck-boost converter for a nominal input voltage of 80 VDC. It operates across an input voltage range of 22 to 160 VDC and delivers 24 VDC at up to 2 A, equivalent to 50 W of output power. Efficiency reaches up to96% at nominal input voltage and full load.

CC/CViParallel operation / active loadsInput and output EMI filterNo power deratingNo-load and short-circuit proof

Input voltage Vin22…160 VDC

Output voltage Vout24 VDC

Output current Iout2 A

Output power Pout50 W

Efficiencyup to 96 %

Product Description: DC-Converter 344-24

Galvanically isolated DC/DC converter, 24V, 2A for customised pitch systems. The robust DC/DC converter is the first-class power supply for further pitch products in the low voltage range for onshore and offshore wind turbines from 200kW to 6MW. Due to the ultra-wide DC input range of 22…160VDC the Demke DC-Converter 344-24 can be operated reliably at different supply voltages. Built from the highest quality components, this DC/DC converter achieves a MTTF value of 1`650`000h, which was calculated according to SN29700 at approx. 70°C.

Technical Data: DC-Converter 344-24

Electrical Specifications

Input voltage Vin	22…160 VDC
Nominal input voltage	80 VDC
Peak input voltage	170 VDC
Max. input current	3 A
Recommended input fuse	4 A
Output voltage Vout	24 VDC
Output current Iout	2 A
Output power Pout	50 W
Efficiency	up to 96 %
Output configuration	Unipolar
Isolation	Galvanically isolated
Insulation strength primary to secondary	1000 VDC
Insulation strength primary to case	2100 VDC
EMI filter	Input and output
Switching frequency	120 kHz
Max. capacitive load	Unlimited

Mechanical Specifications

Dimensions	90 × 90 × 19 mm
Weight	230 g
Mounting	Wall mounting
Connection type	Connector strip

Standards and Certifications

CEEN 55022 < Class AEN 61000-4-2EN 61000-4-3EN 61000-4-4EN 61000-4-5EN 61000-4-6EN 61000-6-2EN 61000-6-4IEC 60068-2-6:2007IEC 60068-2-27:2009REACHRoHS

Product Features

robust and climate-resistant designexcellent thermal characteristicsfull PU potting for demanding environmental conditionscontinuous no-load and short-circuit proofintegrated EMI input and output filterno power deratingCC/CV charging characteristicifor active loads, can be connected in parallelvery low input ripple and noiseultra-wide input voltage rangefor ambient temperatures from -40 °C to +85 °Cthermal shutdown at +90 °C

Applications

Battery-Powered Systems Battery Chargers & Charging Systems E-Mobility Intralogistics & Warehouse Automation Wind Energy

Downloads and Documentation

Datasheet Technical datasheet Safety instructions Technical drawing Characteristic curves
