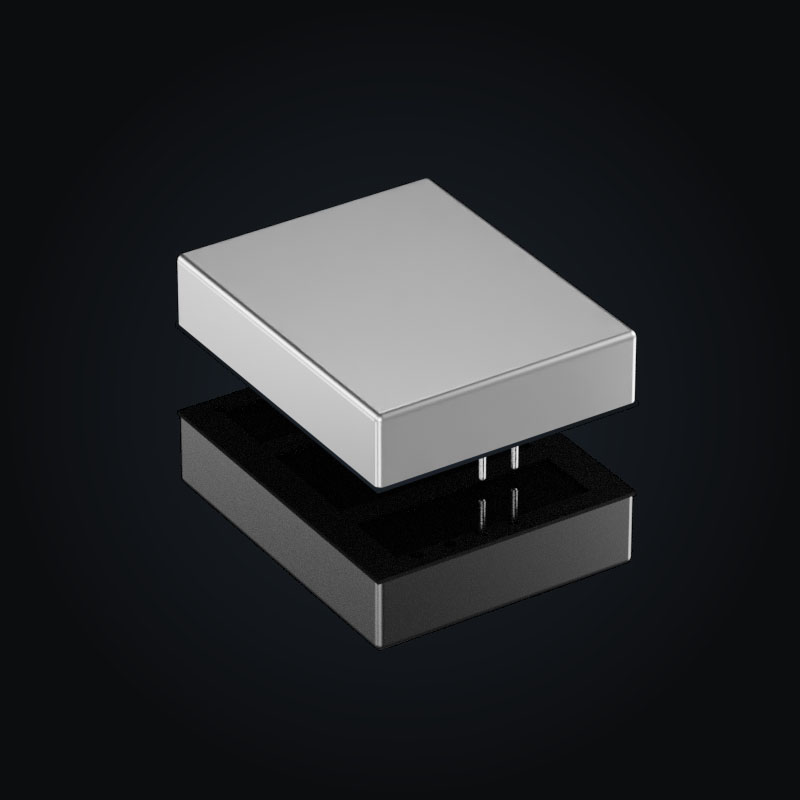

The 437LT-5.0 by Demke Electronic is a functionally isolated THT DC/DC converter for a nominal input voltage of 24 VDC. It operates across an input voltage range of 8 to 32 VDC and delivers 5 VDC at up to 6 A, equivalent to 30 W of output power. Efficiency reaches up to94% at nominal input voltage and full load.
| Input voltage Vin | 8…32 VDC |
|---|---|
| Nominal input voltage | 24 VDC |
| Peak input voltage | 36 VDC |
| Max. input current | 4 A |
| Recommended input fuse | 6 A |
| Output voltage Vout | 5 VDC |
| Output current Iout | 6 A |
| Output power Pout | 30 W |
| Efficiency | up to 94 % |
| Output configuration | Unipolar |
| Isolation | Functionally isolated |
| Insulation strength primary to secondary | 500 VDC |
| EMI filter | Input and output |
| Switching frequency | 200 kHz |
| Max. capacitive load | 10000 |
| Dimensions | 50 × 40 × 10 mm |
|---|---|
| Weight | 48 g |
| Mounting | PCB mounting |
| Connection type | Solder pins |
