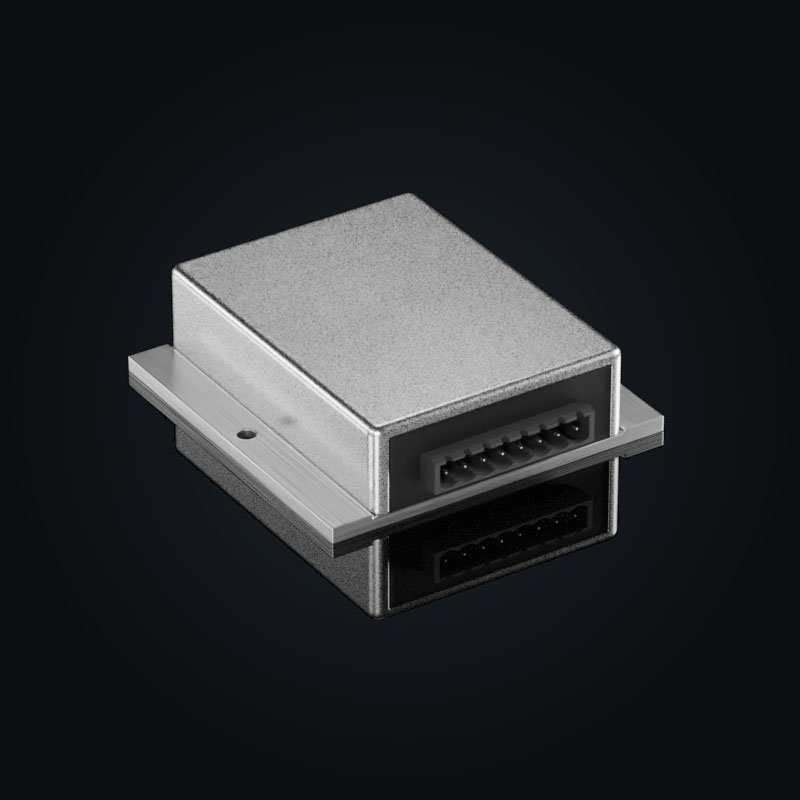

Item # 365.005
Key figures
- ultrawide input voltage range:22 ... 100 VDC
- very high efficiency:up to 92%
- peak input voltage:125 VDC
- output voltage / max. output current:27.0 VDC / 8.0 ADC
Applications
DC/DC battery charging converter with 27V output and wide range input from 22VDC to 100VDC.
A popular application of this galvanically isolated and parallel-switchable DC/DC converter are automated guided vehicles (dc-dc converter AGV), which are permanently in 24/7 use and are supplied with supercapacitors on the primary side (supercapacitor DC/DC converter).
The constant current on the output side in cc mode ensures direct charging of a connected battery (DC/DC converter CC, CV).
The DC/DC converter 365DH-27-SD gets a facelift with the primary side controllable increase of the output voltage to 29V, so that the converter can be used for lead batteries and Li-Ion battery systems.
Please contact us for customised dc dc converter adaptions.
Product features
isolated DC/DC buck-boost converter
robust and climate proof design
excellent thermal characteristics
permanently no-load and short-circuit proof
integrated EMI input and output filter
no power derating
for ambient temperatures between -40°C / +85°C
thermal shutdown at +90°C
CC/CV charging characteristic
Areas of application
- Wind power
- Industrial trucks
- Warehouse management systems
- Rail transport
- Electromobility
- Mountain railways
- Battery-powered electrical systems
- Charging converter
- Universal
