Item # 757.006
Key figures
- ultrawide input voltage range:19 ... 70 VDC
- very high efficiency:up to 95%
- peak input voltage:75 VDC
- output voltage / max. output current:27.0 VDC / 22.0 ADC
Applications

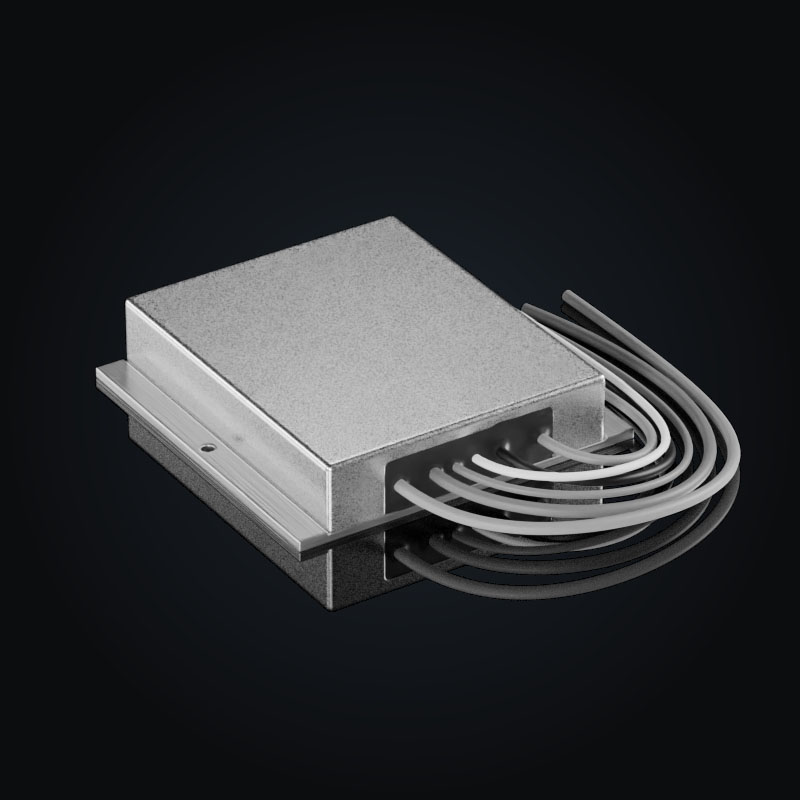

The DC/DC converter with 27VDC or 29VDC output voltage at 22A rated current is ideally suited for 24/7 supercapacitor operated AGVs or shuttles.The constant short-circuit current of approx. 22A and the wide input range of 19 to 70VDC give this galvanically isolated DC/DC step-up and step-down converter ideal properties in harsh applications.
Due to the polyurethane potting and the integrated cable connections, the unit has excellent climate-proof properties.Adjustments to the open-circuit voltage and thus the final charging voltage are very simple and possible at any time.
We are looking forward to your enquiry!
Product features
isolated DC/DC buck-boost converter
robust and climate proof design
excellent thermal characteristics
permanently no-load and short-circuit proof
integrated EMI input and output filter
no power derating
for ambient temperatures between -40°C / +85°C
thermal shutdown at +90°C
CC/CV charging characteristic
Areas of application
- Wind power
- Industrial trucks
- Warehouse management systems
- Rail transport
- Electromobility
- Mountain railways
- Battery-powered electrical systems
- Charging converter
- Universal
